2:1 Lacing Set Up

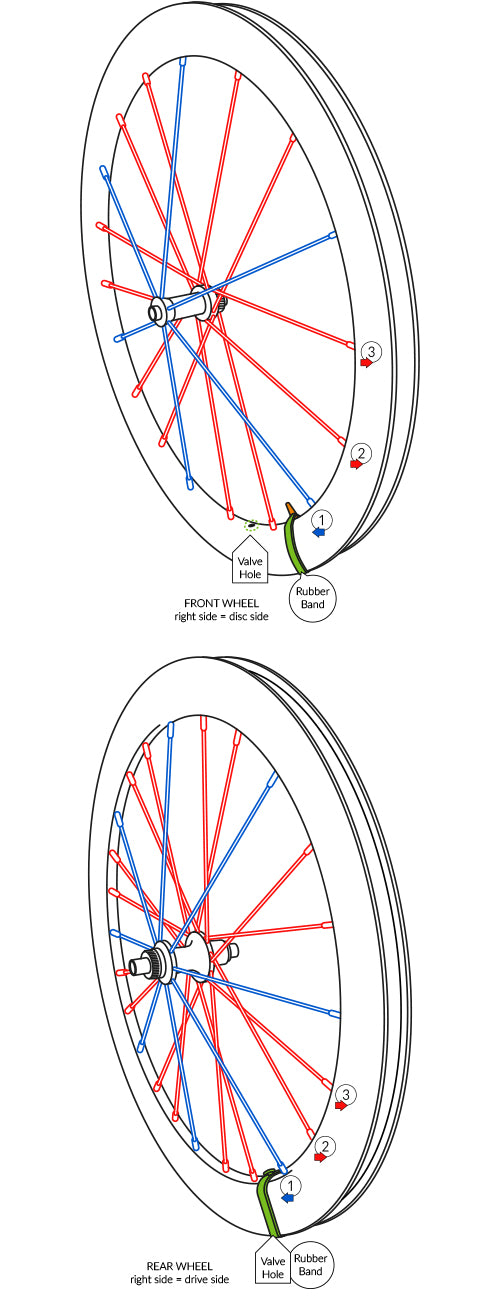

Install the Rubber Band and Plug on the rim
Different from an even wheel, a 2:1 requires the first spoke to be left side (low spoke count side) followed by two right side spokes (the high spoke count side).
Depending on how your wheel 2:1 is laced, you might need to place the Rubber Band and Plug on the rim one space in-front of the valve hole. This will require you to flip the plug upsidedown.
Correct Rubber Band and Plug placement shown in images below.

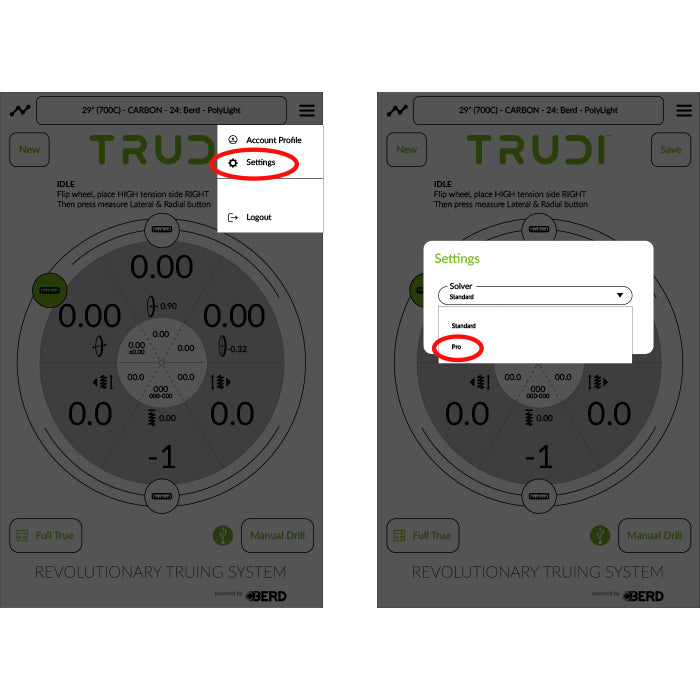

Switch TRUDI into “Pro” Solver mode
- Click the “triple hamburger” button on top right of screen.
- Select the “Settings” button
- The “Settings” pop-up should appear in the center of your screen.
- Tap the drop-down to reveal the “Standard” and “Pro” options
- Select “Pro” and then click “DONE.”

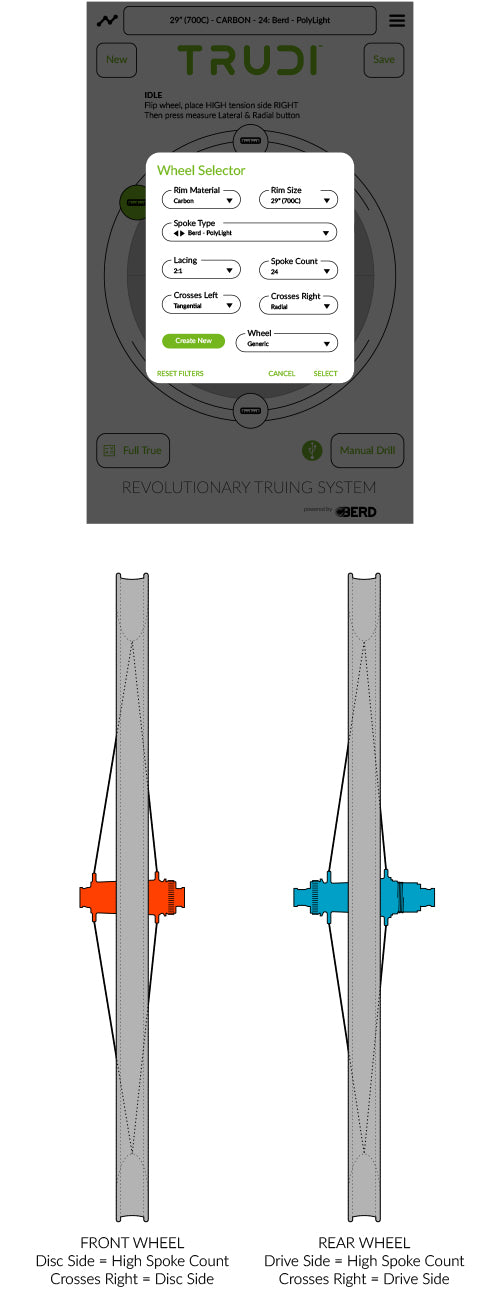

Select your Wheel Recipe
Click the box at the top and center of your screen
The “Wheel Selector” pop-up will appear in the center of your screen.
Input the Rim Material, Rim Size and Spoke Type (same as in Standard mode).
Switch “Lacing” from “Even” to “2:1,” then input “Spoke Count.”
Input “Crosses” types. Crosses Left is the side with less spokes. Crosses Right is the side with a higher spoke count.
